Installing Exhaust Components on Chrysler & Dodge Minivans

Challenge:
Premature Failure of Exhaust Hangers and Isolators on 2008-2010 Chrysler Town & Country & Dodge Grand Caravan/Voyager Minivans

Standard on 2008-2010 Chrysler Town & Country and Dodge Grand Caravan/Voyager minivans, underfloor seat storage can make installing new exhaust components a challenge. With the exhaust running along the frame rail and only a half-inch clearance on the passenger side, it is necessary to realign this tight space prior to installation.

Failing to neutralize the exhaust and ensure the proper clearances can cause unnecessary strain on hangers and isolators. This can cause premature component failure and excessive noise and vibration inside the vehicle.

Original

Replacement

Walker Part #47846

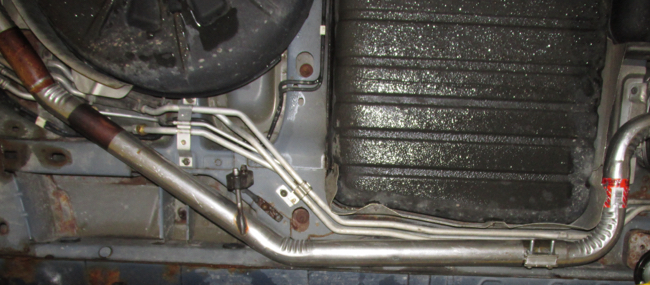

Walker direct-fit parts are engineered to match the OE routing based on design and fit of the vehicle.

Solution:
Neutralize the Exhaust

Step 1: While checking clearances on the exhaust system, be sure to check all isolators to confirm they have similar tension and are allowing the exhaust to be centered within the undercarriage exhaust channel.

Step 2: When positioning the exhaust system, be mindful that the length of the exhaust system will grow as the exhaust system heats up. Be sure to add a little extra clearance on the rear corners to allow for expansion closer to the floor of the vehicle.

Step 3: Reposition any affected exhaust components until the isolators hang freely without excessive tension in either direction. For most slip-fit connections, the recommended pipe insertion is a minimum of ¾" and maximum of 3". For flanged connections, closely inspect all body and exhaust hangers to ensure they are aligned properly.
NOTE: The rubber isolators will hang at a forward angle when the system is cold and may grow and hang toward the rear when it warms up.

Step 4: Tighten all connections, starting from the front, working your way to the rear of the vehicle.

Step 5: Take special care where the exhaust has sharp bends and keep in mind that it will expand toward the rear of the vehicle as the exhaust system heats up. Keep in mind, with the exhaust secured and cooled, the rear hanger may be angled slightly forward due to length contraction of the system when cold.

walker-exhaust-shim

NOTE: If you come across the need for slight fitment adjustments, the use of a composite shim could help, but should not be required. Utilizing a composite shim may help keep the exhaust centered and properly aligned during installation if additional support is needed.

The Walker Advantage:

Walker direct-fit parts are engineered to match the OE exhaust system routing based on design and fit of the vehicle. The Walker routing design provides additional clearance around the spare tire and matches OE routing towards the rear of the vehicle for these applications.
